Fan Cleaning: SONY VAIO PCG-GRV550


  • PREPARE THE TOOLS:
  • KEY POINT: OPEN FROM FRONT, REMOVE THE HIDDEN SCREW
  • SLIDE THE SOUND PANEL TO RIGHT, DETACH THE SIGNAL STRIP UNDERNEATH.

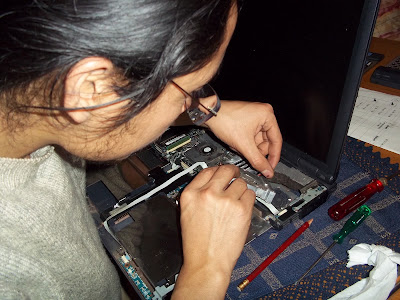

  • TAKE AWAY THE KEYBOARD, TAKE OFF THE SIGNAL STRIPS
  • DRAW A MAP OF SCREWS
  • MANY TEDIOUS STEPS OMITTED, E.G., REMOVE FROM BACK SIDE, BATTERY, HARD-DISK, CD DRIVER, AND REMOVE THE SCREWS AT THE EDGE WHICH CONNECT THE TOUCHPAD SHELL, REMOVE THE LAYER UNDER THE KEYBOARD, WHICH COVERS THE FAN AND MAINBOARD.
  • REACH THE LAYER OF FANS
  • TAKE OFF THE BIG FAN AND REMOVE THE DUST LAYER
  • CLEAN INSIDE OF THE FAN
  • THE MAP OF SCREWS FROM BACK SIDE
  • REASSEMBLE ALL PARTS ACCORDING TO YOUR MEMORY AND SCREW MAP.
